Features:

Run up to 36” tires

Front A-arms

1.25" thick DOM tubing

1.5" forward offset high-clearance

Heavy-duty z-bend tie rods

Rear trailing arms

4" rear offset for a smoother ride

1.5" DOM tubing for extreme strength

Extended trailing arms include all bearings

(4) Rhino Brand Axles, extended length

5" increased track width

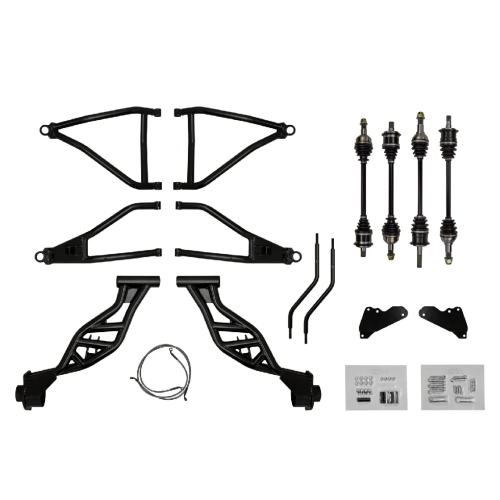

Kit Includes

Front high-clearance 1.5” offset A-arms (chromoly)

Rear 4” offset trailing arms (chromoly)

(4) Rhino Brand Axles

Heavy duty Z-bend tie rod kit

Extended brake lines

All hardware and installation instructions

Get Wild with a 6” Lift

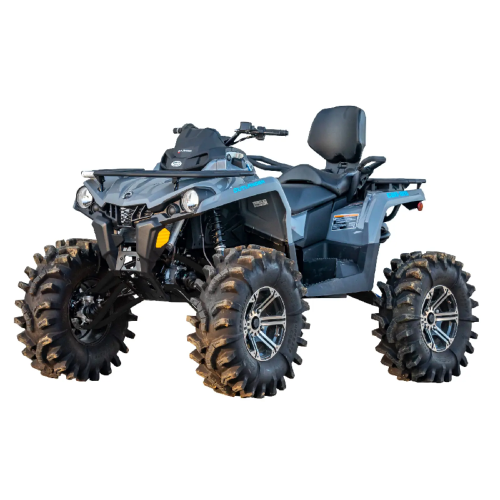

When you put SuperATV’s 6” Lift Kit on your Can-Am Outlander, you’ll be able to dominate any ride. With all-new suspension, a longer wheelbase, and room for massive tires, you’ll turn heads and tear up bounty holes everywhere you go.

A true 6” lift

Fit up to 36” tires

Increases your Outlander’s wheelbase by 5.5”

Includes chromoly steel A-arms and trailing arms

Comes complete with extended Rhino Brand Axles

More Clearance for Better Rides

Between the 6” lift and the 5.5” longer wheelbase, you get room for up to 36” tires. You’ll have tons of ground clearances and loads of stability thanks to the extended wheelbase. Get crazy and take every bounty hole head-on. This Outlander lift kit makes it possible.

Chromoly Steel Suspension

A big lift kit needs beefed-up suspension. That’s why our A-arms use 1.25” chromoly steel tubing and our trailing arms use 1.5” chromoly steel tubing. Together, they make sure your quad stays in one piece no matter how hard you hit the throttle.

Comes with Rhino Brand Axles and Heavy-Duty Tie Rods

You get everything you need to get rolling. That includes heavy-duty, gusseted, Z-bend tie rods and chromoly steel Rhino Brand Axles. Our extended axles are purpose-built for high articulation and heavy machines so they won’t hold you back.

Let SuperATV Do the Work—Preassembly Available!

Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we’ll install them for you for free! We save you money and time so you can get back to doing what you love.

NOTE: You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Standard-Duty Ball Joints

SuperATV’s standard replacement ball joints give you OEM quality without the OEM price! They’re made with hardened chromoly steel studs and housings—all zinc plated—for superior strength and longevity. All of this delivers a ball joint that’s as strong as or stronger than stock.

Heavy-Duty Ball Joints

Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy-duty ball joints can withstand double the pressure of an OEM ball joint!

Super-Duty 300M Ball Joints

We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.
