NOTE:

Does NOT fit X RS or 72" models

1" wheel spacers required when running stock wheels

Front Sway bar and links will not be re-installed with lift

If using OEM ball joints, a 28” or 30” limit strap is required

If using SuperATV ball joints, a 26” limit strap is required

Features:

True 6” of lift

20” total ground clearance (14” stock)

Clearance for up to 38” tires (up from 30” stock)

6” wider stance for increased stability (on 64" models)

Compatible with OEM and SuperATV heavy-duty ball joints

Includes 4 SuperATV axles (Rhino 2.0)

Preadjusted pivot blocks give you perfect camber out of the box

Powder coated for increased durability and UV resistant

Backed by a Lifetime Warranty!

X300 Axle Features:

300M alloy steel shaft

CV components made of 300M and 4340 alloy steel

Maximized CV, spider, and cage size for superior strength

Shaft flexes to absorb impact

Reduces strain on CVs and drivetrain components

CVs packed with proprietary high-temp grease

Backed by a 3-Year Warranty — the industry’s best axle warranty

Rhino 2.0 Features:

100% stronger than stock

Utilizes the Rhino 2.0 Formula

Size: Massive 4mm increase in size!

Heat Treatment

Constructed of 4340 chromoly steel and finished with a proprietary heat treatment

Industry leading 18-month warranty

Field and lab tested for extreme strength and endurance

CAD drawn for expert precision

Fits 38” Tires

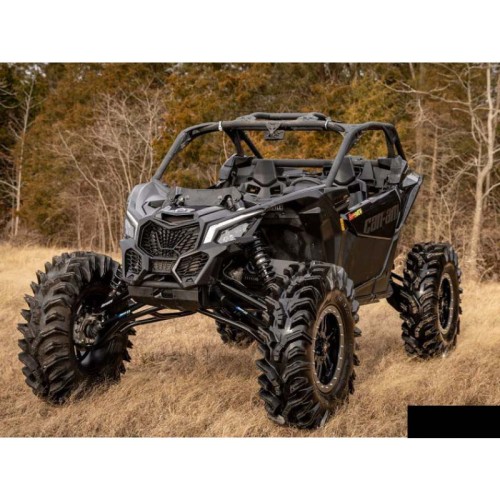

Get lifted and get wild with a SuperATV 6” Lift Kit for the Can-Am Maverick X3. With 6” of extra ground clearance and room for larger tires—up to 38 inches—you’ll be turning heads and tearing through bounty holes!

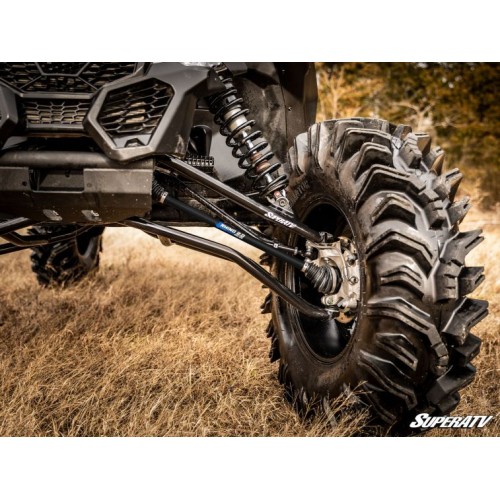

High-Clearance Chromoly A-Arms

We make our A-arms with 1-1/4” chromoly steel tubing for superior strength and performance. The design and tube bends give them 1-1/2” of additional high-clearance. Plus, they come with preadjusted pivot blocks to give you perfect camber right out of the box.

Bulletproof Suspension

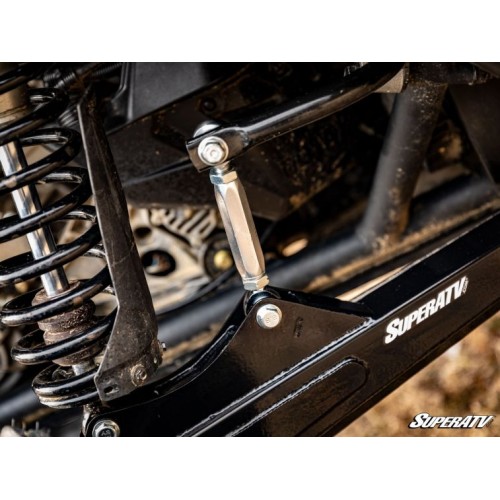

The heavy-duty boxed trailing arms and radius arms are made with high-strength, 1/8” steel plating that makes them the more capable in the most extreme riding conditions.

Includes Rhino 2.0 Axles

Your kit comes with heavy-duty Rhino 2.0 Axles. They’re made from chromoly steel from end to end to boost strength. The CV joints are bigger than stock to increase durability and articulation angles. Rhino 2.0 axles can run at extreme angles for long periods of time without overheating or binding. They’re built for going big.

Backed by a Lifetime Warranty

The Maverick X3 64” models really know how to throw down hard. That’s why all suspension components including tie rods, A-arms, trailing arms, radius arms, and lift brackets are backed by a Lifetime Warranty. Ride your UTV where you want the way you want—SuperATV’s got your back.

KIT INCLUDES

Front high-clearance A-arms (chromoly)

Rear trailing arms

Sway bar links (billet aluminum)

Rear radius arms

Shock brackets and spacers

4 SuperATV axles (Rhino 2.0)

Heavy-duty tie rod kit

Extended brake lines

All hardware and installation instructions
