The Honda Rincon has a long run, and a lot of them live in muddy country. Owners who ride deep water and thick mud usually end up wanting two things: a radiator that stays clean and an intake that stays dry.

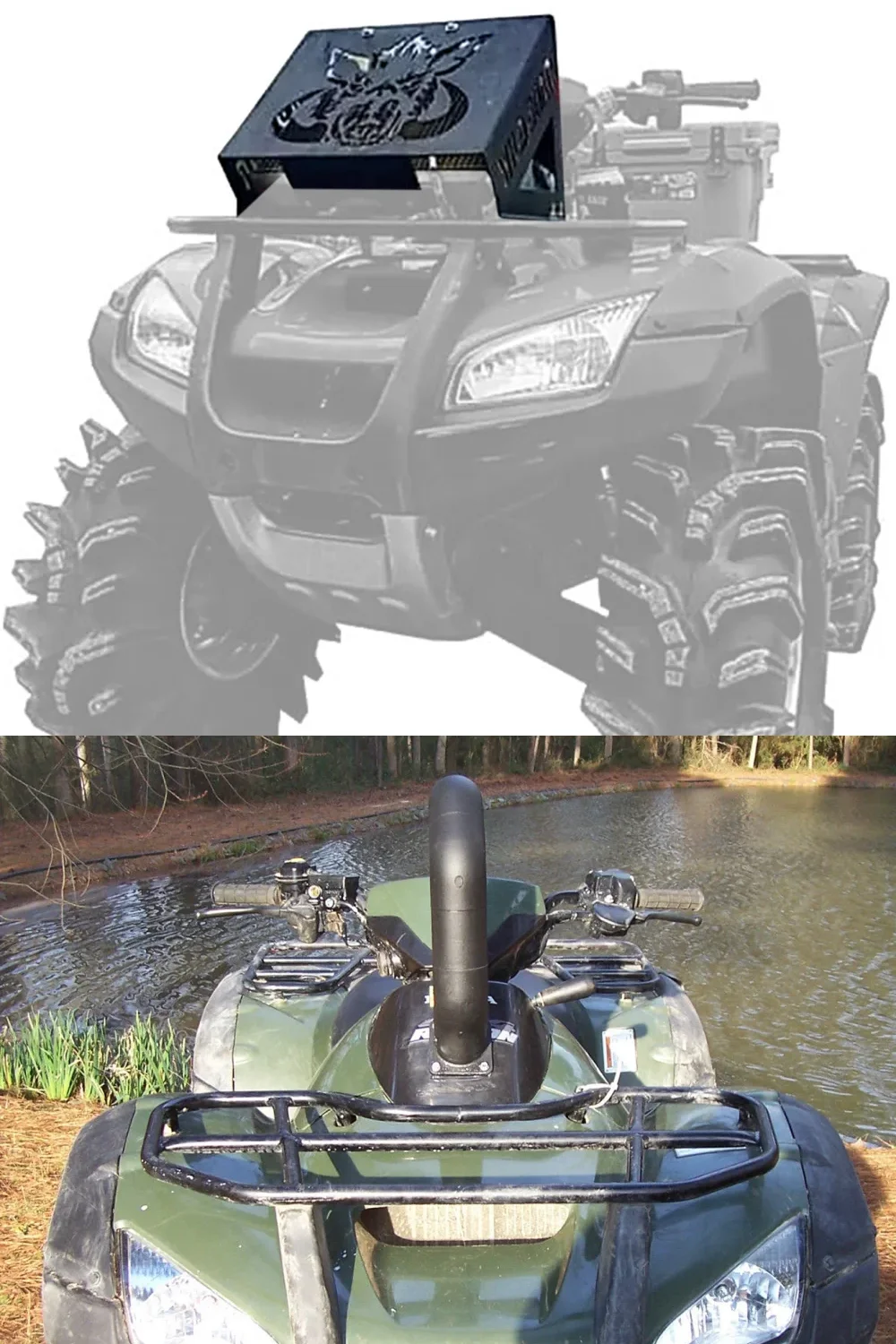

Our Honda Rincon 650/680 2003-2023 Radiator Relocation/Snorkel Combo Kit takes care of both in one order, with all the hardware needed for installation.
Which Rincons it fits
This kit is made for the Honda Rincon 650 and 680 from 2003 through 2023. That covers a wide span of model years, which is good news if you bought a used Rincon. Still, confirm your exact model and year before ordering. If your machine has other aftermarket parts up front, such as a different rack or bumper, think about how everything will fit together. Questions? Call us at 850-912-4350.
Why pair a snorkel with the radiator kit
A radiator relocation kit moves the radiator up out of the mud, so the fins do not pack full and cause overheating. A snorkel moves the air intake up high so the engine breathes clean air instead of water. On a Rincon that sees deep holes, the two problems show up together, so solving them together makes sense. It also means one install session instead of two.
What the install looks like
This is a job for someone who is comfortable with hand tools and some patience. In general terms, you will:
- Let the machine cool, then drain the coolant.
- Remove the plastics and parts that block access to the radiator and intake areas.
- Mount the radiator in its new position with the included hardware.
- Route the snorkel so the intake and vent openings sit up high.
- Refill and bleed the cooling system, then check for leaks.
- Check every snorkel connection is tight so water cannot sneak in.
Go slowly on the snorkel connections. A single loose joint can let water into the intake, which defeats the purpose.
After the install
Once the kit is on, keep up with maintenance. Wash out the radiator after mud rides, check your air filter and inspect the snorkel connections every so often. A sealed intake only works if it stays sealed. Done right, this kit lets your Rincon keep running cool and breathing clean air in the kind of conditions that would park a stock machine.
