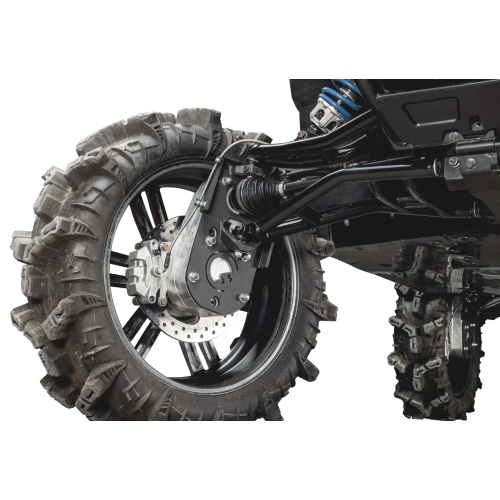

SuperATV Polaris Xpedition 8" Portal Gear Lift

Features:

Available with billet or cast aluminum housing
Cool, quiet, precision-ground gears made from 9310 alloy billet steel
Increases width by 4” per side (8” total)
1.5” diameter 4340 hardened steel drive shaft
No leak bearings and seals
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
Comes complete with all hardware, backing plates, brakes lines and instructions

Wheel Requirements:

22” or larger wheel required
Wheels cannot exceed 5” backspacing

Max Tire Sizes for 8” Portal Gear Lift

Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Take Your Polaris Xpedition Over the Top with GDP Portals

Turn your Polaris Xpedition into a powerhouse with SuperATV’s GDP Portals. With a 45% gear reduction and 8” of lift in one package, you’ll have the ability to tackle tough terrain and run up to 38” tires. For maximum strength, upgrade from cast housing to billet aluminum housing. Plus, we’re the only company that offers portals for your rig.

Conquer Every Terrain

Conquer tough terrain easily with GDP Portals. You’ll have the ground clearance you need to put larger tires on your Polaris Xpedition. With a 45% gear reduction, you’re getting maximum torque—so you’ll be able to run large tires as if they were stock size.

Protect Your Drivetrain with GDP Portals

GDP Portals move the gear reduction to the wheel hub instead of the transmission. This setup helps keep your axles, prop shaft, differential, and transmission safer by putting less stress on them. You get more power without wearing out your drivetrain.

Maximum Strength

Your Xpedition is tough—why shouldn’t your portals be? Our GDP Portals come in cast or billet aluminum housing. Combine that with our backing plates that are made of advanced steel alloy and you’re getting the toughest portals on the market.

Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Double-angular contact output bearings to prevent premature wear
Roller idler and drive bearings to maintain perfect gear meshing

Reinforce Your UTV with a Frame Stiffener

Your rig is built to take on extreme terrain and wild obstacles, but that doesn’t mean its frame can handle the heavy-duty awesomeness of 8” GDP Portals. That’s why a frame stiffener is required. We’ve ridden hard enough to know that frame damage happens. So get a frame stiffener and don’t worry about it.

The Customer Service You Need

We have a dedicated customer service team that will help you find what works best for you. Give us a call and we can get you set up with the right portals ASAP.

8" Portal Gear Lift Includes:

(4) Assembled portal hub boxes complete w/ 9310 gears, seals, output shaft, gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors w/ lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates

(4) Shims

Extended brake lines with parking brake

All required hardware including recessed castle nut socket
