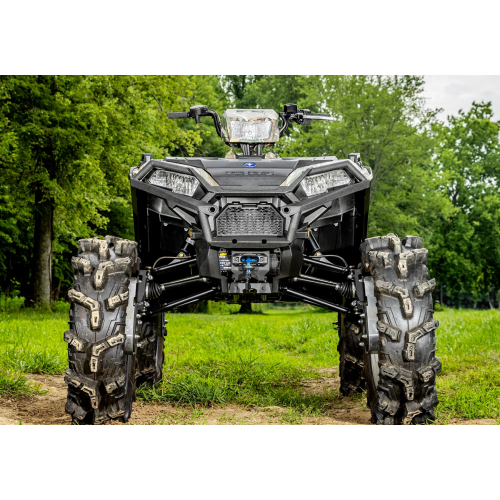

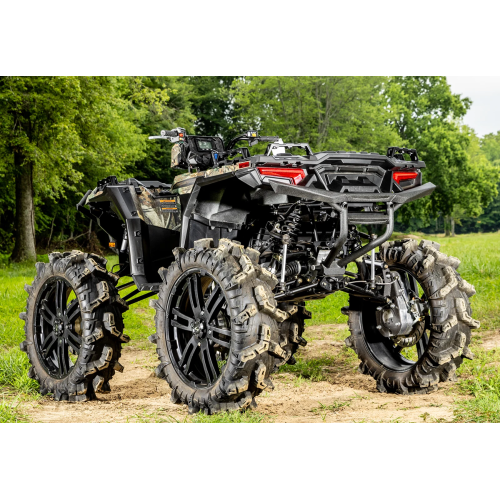

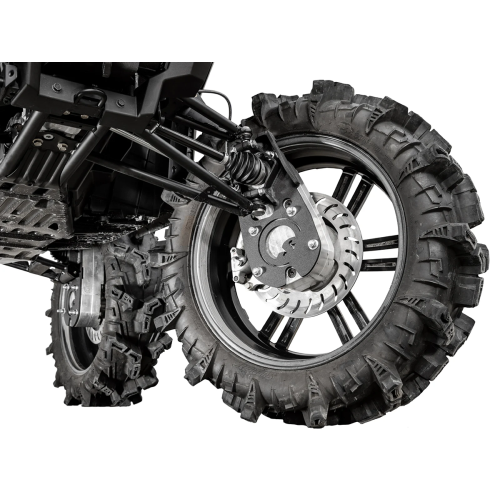

SuperATV Polaris Scrambler 8" Portal Gear Lift

Features:

Available with billet or cast aluminum housing
Cool, quiet, precision-ground gears made from 9310 alloy billet steel
Increases width by 4 in. per side (8 in. total)
1.5” diameter 4340 hardened steel drive shaft
No leak bearings and seals
Universal hub fits all major bolt patterns
Gear reduction reduces stress on your drivetrain
Comes complete with all hardware, backing plates, brakes lines and instructions

Wheel Requirements:

22” or larger wheel required
Wheels cannot exceed 5” backspacing
Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

Max Tire Sizes for Portal Gear Lift

Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Bigger Tires and Better Performance

Our GDP Portals for your Polaris Scrambler give your machine the power to perform at its best. You get an all-in-one gear reduction and 8” lift, giving you the ability to run large tires and master any terrain. Our portals come with 45% gear reduction. Upgrade from cast to billet aluminum housing for ultimate strength.

Conquer Every Terrain

Dominate any terrain with confidence when you install GDP Portals on your Polaris Scrambler. More ground clearance allows for bigger tires. With a 45% gear reduction, you’re getting maximum torque. This makes it so you can turn large tires as if they were stock size.

Minimize the Strain on Your Drivetrain

With GDP Portals, you’re putting the gear reduction in the wheel hub instead of the transmission, giving your drivetrain extra protection. It’ll put less stress on your axles, prop shaft, differential, and transmission. This could save you from costly repairs.

Maximum Strength and Durability

You want portals that you can count on. SuperATV’s GDP Portals are offered with cast or billet aluminum housing. Combine that with our 5/16” backing plates made of advanced steel alloy and you’re getting the best portals in the industry.

Our housings are reinforced for gear retention and optimized for oil flow
Advanced steel alloy backing plates are stronger than chromoly
Enhance with Portal Blood—gear oil formulated for GDP Portals
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks
Double-angular contact output bearings to prevent premature wear
Roller idler and drive bearings to maintain perfect gear meshing

Only the Best Customer Service

No one wants to spend money on portals just to realize what they ordered doesn’t work for them. That’s why we have a team dedicated to helping you find the GDP Portals that fit your needs. Give us a call so we can set you up with the perfect portals for your Polaris Scrambler.

Polaris Scrambler 8” Portal Gear Lift Includes:

(4) Assembled portal hubs complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings

(4) Universal hubs and stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

(4) Steel caliper mounting plates

(2) Steering arms

Extended brake lines

All required hardware, including recessed castle nut socket
