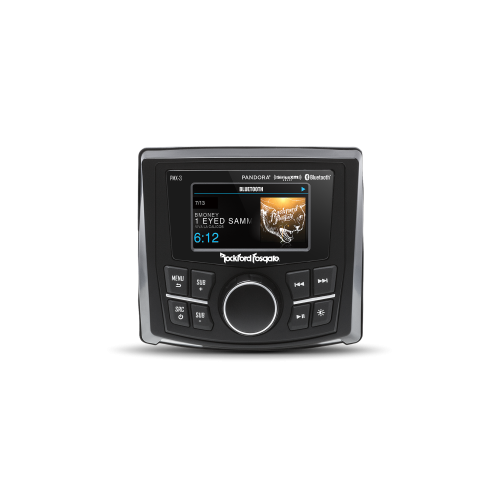

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output.   1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

2-Year Warranty

Epoxy coated circuit board for water resistance

Two-piece mounting system to secure panel to mounting surface

ASTM: B117 Salt Fog & D4329 UV Exposure Tested

2.7" Full color Thin Film Transistor display

Internal power amplifier 4x45W 2Ω stable

Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information

Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)

Bluetooth streaming audio (A2DP) protocol version 1.4 installed

Display album art from connected iPhones on the radio display

Folder browsing via BT connected iPhones

Dedicated DSP per zone with 7-band graphic EQ + Punch EQ

Selectable high pass and low pass crossover points for each zone

Selectable crossover slopes of 12dB or 24 dB for each zone

Adjustable input gain for each source

Tactile convex buttons for easy identification

Wired and front panel illumination control

Wet Bonded Display

Direct composite video input connection

External trigger input to activate reverse camera mode

Day/Night display mode

Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt

IPX6 Marine Grade for prevention of water intrusion

Made for iPhone apple certified

Integrated voltage gauge w/ low voltage alert

Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed

Wired remote ready (up to 3 remotes)

Simple Secure Pairing (SSP)

Waterproof Rotary Encoder Volume Control

White LED Button Illumination

Front Panel Sub Control

Rear AUX-In (L/R)

Rear USB With 1A Charging Only

Upgradeable Firmware and Bluetooth Software via USB

SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
