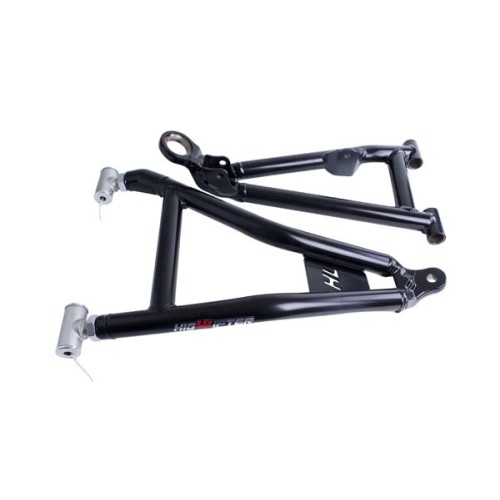

APEXX Front Forward Control Arms Kawasaki Teryx KRX 1000

Features:

Adjustable heat-treated collars for camber adjustability with a 1" thread

Raked forward 2"

Over 3 degrees of camber adjustment in each direction

Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible

Ladder bar compatible with the 1.5" ID clamps

Extreme duty 1.5" x .120" DOM steel construction

Up to 2" of added ground clearance compared to OEM lower arm

Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps

Optimized sway bar linkage angles

Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)

Powder Coated

Heavy Duty Strength

High Lifter's new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5" DOM with .120 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability

The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8" of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you're adding to your ride. This kit comes packaged and pre-adjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance

We maximized ground clearance by strategically arching the lower control arm with double bends. This unique design allowed us to get an additional 1.75" of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We've improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

Reinforced Ball Joints Brackets

Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or "egging" of the mounting bracket.

Note: Pre-installed ball joint options come with four ball joints total - two are pre-installed in the upper arms and two are included to replace the stock ball joints in the spindle if needed. This applies to the pre-installed ball joint option only.
