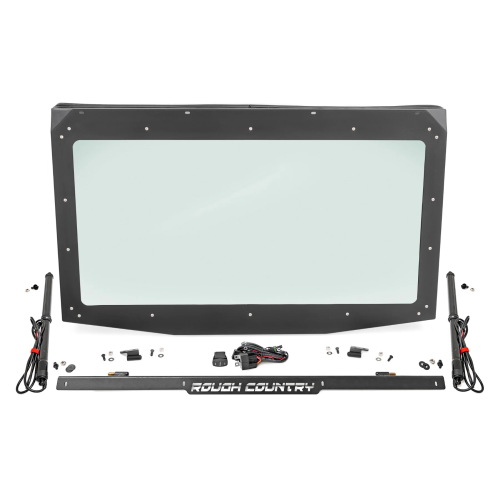

Electric Tilt Windshield Glass Polaris Ranger XP 1000

Fitment Notes:

Fits with most factory roofs but in some cases requires the roof to be trimmed ¼ to 3/8” along the front edge to clear windshield movement.

Maximum Durability and Visibility. Say hello to a whole new view with Rough Country's Auto-Tilt Glass Windshield for the Polaris Ranger. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Polaris Ranger is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead.

Heavy-Duty Reliability. The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Ranger deserves a windshield that is just as tough.

Installation. Our new Auto-Tilt Glass Windshield can be installed on Polaris Ranger models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling.

Warranty. Rough Country's Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!

• Frame Dimensions Width: 50" Height: 29.89"
• Glass Dimensions Width: 45.5" Height: 22.75"
• Metal Frame with UV and Scratch Resistant Powder Coating.
• DOT Approved Glass – Scratch & Impact Resistant
• Electrically actuated with position control – Open slightly for airflow or fully open for max airflow.
• Open and close with the push of a button.
• Edge seal creates a seal against the face of the vehicle blocking out most dust and water.
• Easy installation.
•


Cylinder Specifications:

Input Voltage: 12V

Stroke: from 382±3mm to 586±3mm

Force: 410N. Max support 45KGs

Speed(no load): 10mm/s

IP Rating: IP65

Working Temp: -5-50℃

Current(full load): 5A
