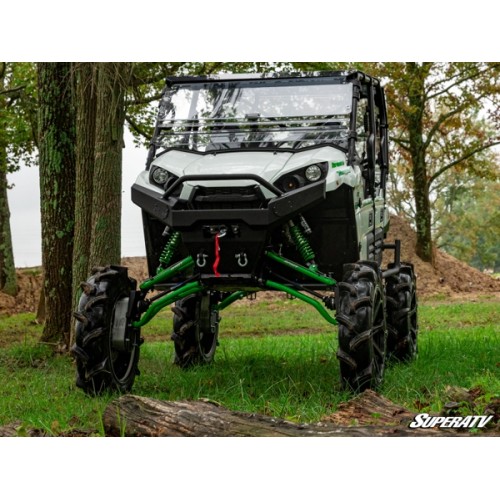

SuperATV Kawasaki Teryx 8" Portal Gear Lift

Includes 4 assembled portal hub boxes with 9310 gears, seals, output shafts, universal hubs, backing plates, caliper mounting plates, brake brackets, extended brake lines, and all hardware.

0.0

0 ratings

SuperATV Kawasaki Teryx 8" Portal Gear Lift

Free Shipping

Tags: SuperATV Kawasaki Teryx 8" Portal Gear Lift

$4,653.95

Ex Tax: $4,653.95

SuperATV Kawasaki Teryx 8" Portal Gear Lift

Includes 4 assembled portal hub boxes with 9310 gears, seals, output shafts, universal hubs, backing plates, caliper mounting plates, brake brackets, extended brake lines, and all hardware.

0.0

0 ratings

Availability: In Stock
Brand: Super ATV
Model: PHG-8-Teryx

Satisfaction Guaranteed

30-Day Easy Returns

Free Shipping!

Secure Checkout

Why Riders Choose Us

10+ Years in the Industry

4.9 Average Rating

US-Based Support

500,000 + Orders Shipped

Ships Same Day

Real People. Real Support.

Ships today if ordered in the next:

DAYS

HOURS

MINUTES

SECONDS

$4,653.95

Ex Tax: $4,653.95

Available Options

Choose Your Portal Options

Do you need a frame stiffener?

Availability: In Stock
Brand: Super ATV
Model: PHG-8-Teryx

added

Add to Cart

Buy Now Question

Wishlist Compare

Satisfaction Guaranteed

30-Day Easy Returns

Free Shipping!

Secure Checkout

Ships today if ordered in the next:

DAYS

HOURS

MINUTES

SECONDS

Why Riders Choose Us

10+ Years in the Industry

4.9 Average Rating

US-Based Support

500,000 + Orders Shipped

Ships Same Day

Real People. Real Support.

Features:

Available with billet or cast aluminum housing

Cool, quiet, precision ground gears made from 9310 alloy billet steel

1.5 in. forward and rear offset

Increases width by 4 in. per side (8 in. total)

1.5 in. diameter 4340 hardened steel driveshaft

Housings use advanced gaskets and rubber O-rings that don’t let anything through

Universal hub fits all major bolt patterns 

Gear reduction reduces stress on your drivetrain

Wheel Requirements:

22" or larger wheel required

Wheels cannot exceed 5" backspacing

Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

Max Tire Sizes for 8” Portal Gear Lift

Max Tire Size	Required Suspension Setup with Portals	Recommended Portal Gear Reduction
34"	Stock	30%
35"	With SuperATV 2" Lift Kit	30%
38"	With SuperATV 1.5" Forward A-Arms	30%
40"	With SuperATV 2" Lift Kit & SuperATV 1.5" Forward A-Arms	30%
44"	With SuperATV 6" Lift Kit	45%

Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Power and Performance

Load the whole gang up in your Teryx and get ready for a wild ride with SuperATV’s Kawasaki Teryx 8" Portal Gear Lift. With the massive lift and impressive 45% or 60% gear reduction, you can take on gigantic bounty holes like they were mud puddles. You’ll crush every obstacle under your massive tires too. Whoever's riding shotgun will get a ride they’ll never forget.

GDP—Dominate the Competition

At SuperATV, we know portals. There’s a reason more riders choose our Gear Driven Performance portals over any other system. We engineer every aspect of our portals down to the smallest detail for maximum performance and reliability. You can trust GDP to dominate the competition every ride, every time.

Dominate the Swamp

There’s not a swamp on earth that can stand up to GDP portals. If a massive 8” lift and extra room for giant tires weren’t enough, a 45% or 60% gear reduction gives your Teryx the torque needed to dominate the deepest bogs. Huge lift + giant tires + powerful torque = an absolute mud monster. You’ll never back down from deep sludge again.

Gear Reduction Protects Your Drivetrain

When the gear reduction is in the hub instead of the transmission, your entire drivetrain benefits from it. Your axles, differential, prop shafts, and transmission will face less wear and tear thanks to this gear reduction.

Stronger Housings by Design

Whether you choose cast or billet aluminum, you know you’re getting a housing that’s built for battle. We’ve spent years refining our housing design to maximize strength in key areas that see the most force. With more than 10,000 Gear Driven Performance housings out on the trail, you know they’re built to last. Combine them with 5/16” backing plates made with an advanced steel alloy, and you’ve got the brawniest portals on the market.

Our housings are reinforced for gear retention and optimized for oil flow

Advanced steel alloy backing plates are stronger than chromoly

Enhance with Portal Blood—gear oil formulated for GDP Portals

There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates

A sealed input gear and double-lipped output seal

100% sealing coverage throughout so you can forget about oil leaks

Double-angular contact output bearings to prevent premature wear

Roller idler and drive bearings to maintain perfect gear meshing

Reinforce Your UTV with a Frame Stiffener

These 8” portals are hardcore. In fact, they’re more hardcore than your Kawasaki Teryx. You need a heavy-duty frame stiffener to make sure your UTV survives all the action-packed rides you’re about to go on. Trust us, we’ve bent more frames than we can count. Don’t mess around. Get a frame stiffener.

Top-Rated Customer Service

Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

8” Portal Gear Lift Includes:

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs

(4) Specialized steel alloy backing plates

4) Steel caliper mounting plates

8) Caliper mounting plate shims

Left and right parking brake brackets

Left and right brake cable brackets

Steering stop kit

Extended brake lines

All required hardware, including recessed castle nut socket

Frame stiffener (must select at checkout)

Kawasaki Teryx : 2014+
Kawasaki Teryx 4 : 2012+

Wheel Requirements:
22" or larger wheel required
Wheels cannot exceed 5" backspacing
Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
