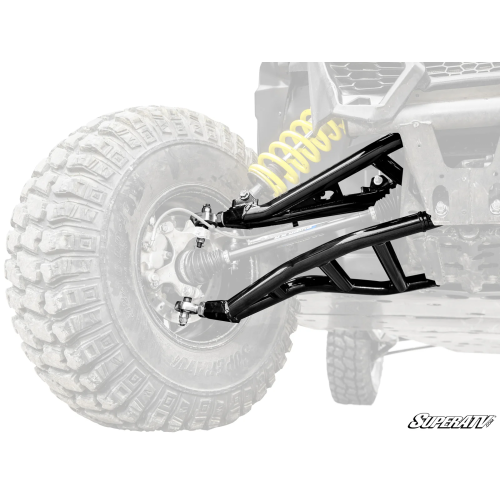

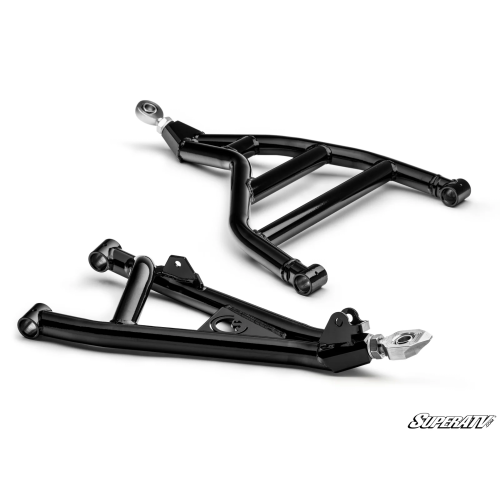

Can-Am Maverick X3 Atlas Pro Heim Joint 1.5" Forward Offset A-Arms

Features:

• Adds a 1.5” forward offset
• Adds 1.5” of ground clearance
• Increases maximum tire size without a lift
• Maverick X3 64”: 34”
• Maverick X3 72”: 35”
• 7/8” lower chromoly heim joints
• 7/8” upper monoball joints
• 1.5” tubing is 50% larger than stock
• Adjustable pivot blocks for full camber adjustability
• Utilizes stock A-arm bushings
• Steering stop kit included
• UV-resistant powder-coat finish
• Easy to install
• Backed by a lifetime warranty
• Pairs perfectly with GDP Portals
•

• Beefed-Up Atlas Pro A-Arms

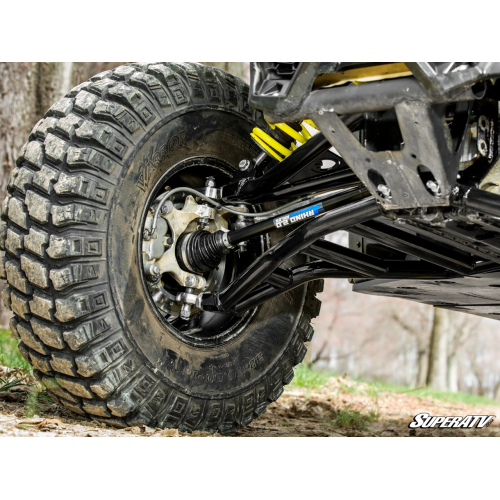

• It’s so annoying to have to route and re-route around obstacles on the trail all because you’re afraid of junking up your A-arms—or worse. Turn your Can-Am Maverick X3 into an absolute beast with SuperATV’s Atlas Pro 1.5” Forward Offset A-Arms. The giant tubing will impress you with its toughness. And the upper 7/8” heims and the lower 7/8” monoball joints are freakin' massive. There’s not a rocky trail mean enough or a mud hole deep enough to stop you with these A-arms installed!
• Fit larger tires without a lift
• Up to 34” tires for 64” Can-Am Maverick X3
• Up to 35” tires for 72” Can-Am Maverick X3
• Bend design gives 1.5” of additional clearance
• 1.5” tubing is bigger and stronger than stock
•

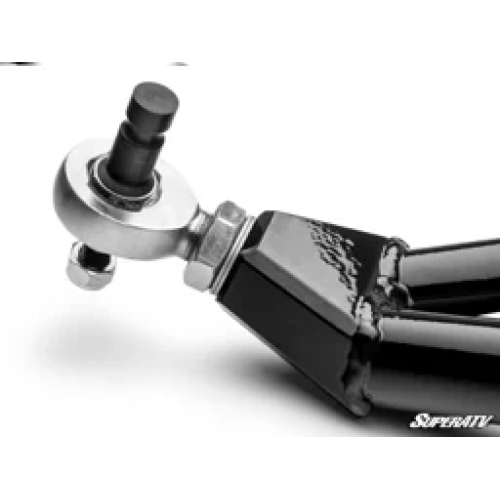

• Monster 7/8” Lower Heim Joints
• Let’s talk about the beefy 7/8” lower heim joints. They completely replace your OEM lower ball joints to seriously improve performance on extreme rides. Their increased size and strength make them perfect for rock crawlers or big mudders—basically anybody that needs boosted strength and performance.
•

• Easily Adjustable Camber
• Heim joints make adjusting camber a snap. They’re easy to tweak even on the trail. Plus they come preset to stock specs, so you don’t have to mess around with them if you don’t want to.
•

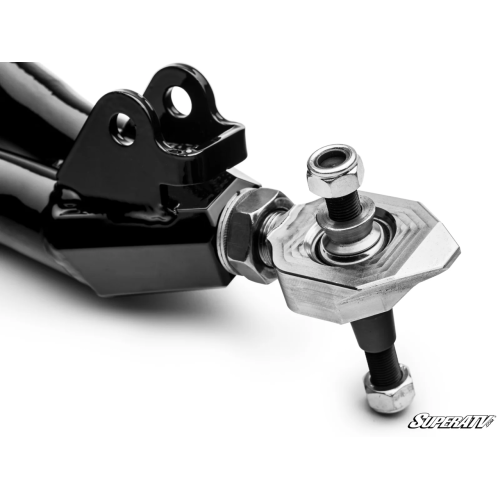

• Super Strong Upper Monoball Joints
• The upper 7/8” monoball joints are just as tough as the heims. They’re bigger and stronger than OEM, so they can handle an impressive amount of abuse. If you want to push your Maverick X3 to the limit, our Atlas Pro A-Arms are ready for the job.
•

• PTFE Lined for Durability
• Both the upper monoball joints and the lower heim joints come outfitted with a durable PTFE liner. PTFE is insanely durable and prevents metal-on-metal contact inside the joint. Thanks to the PTFE liner, these joints won’t break down no matter how hard you push your A-arms. That means you’ll get superior performance on every ride, every time.
•

• Gigantic 1.5” Tubing
• You know Atlas, right? The Greek god that holds up the world? Yeah, that’s what we were going for here. Atlas Pro A-arms simply cannot be beat when it comes to size and strength. They’re an impressive 50% larger than stock—no ordinary trail hazard is gonna put these guys down for the count. If you want A-arms strong enough to hold up the world (or at least hold up to some gnarly rides), you need Atlas Pro.
•

• 64” Models
  Can-Am Maverick X3 900 : 2018
  Can-Am Maverick X3 Turbo : 2017-2020
  Can-Am Maverick X3 Turbo R : 2018-2020
  Can-Am Maverick X3 DS Turbo R : 2021
  Can-Am Maverick X3 DS Turbo 64 : 2022+
  Can-Am Maverick X3 DS Turbo RR 64 : 2022+
  Can-Am Maverick X3 X DS Turbo R : 2017-2020
  Can-Am Maverick X3 X DS Turbo RR : 2020-2021
  Can-Am Maverick X3 X DS Turbo RR 64 : 2022+
  Can-Am Maverick X3 X MR Turbo : 2018-2021
  Can-Am Maverick X3 X MR Turbo RR 64 : 2022+
  Can-Am Maverick X3 X RC Turbo : 2018-2021
  Can-Am Maverick X3 X RC Turbo RR 64 : 2022+
  Can-Am Maverick X3 MAX Turbo : 2017-2020
  Can-Am Maverick X3 MAX Turbo R : 2018-2020
  Can-Am Maverick X3 MAX DS Turbo R : 2021
  Can-Am Maverick X3 MAX DS Turbo 64 : 2022+
  Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+
  Can-Am Maverick X3 MAX X DS Turbo : 2017-2019
  Can-Am Maverick X3 MAX X DS Turbo R : 2020
  Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

  72” Models
  Can-Am Maverick X3 RS Turbo R : 2021
  Can-Am Maverick X3 RS Turbo RR 72 : 2022+
  Can-Am Maverick X3 X MR Turbo R : 2018-2019
  Can-Am Maverick X3 X MR Turbo RR : 2020-2021
  Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
  Can-Am Maverick X3 X RC Turbo R : 2018-2020
  Can-Am Maverick X3 X RC Turbo RR : 2020-2021
  Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
  Can-Am Maverick X3 X RS Turbo R : 2017-2020
  Can-Am Maverick X3 X RS Turbo RR : 2020-2021
  Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
  Can-Am Maverick X3 MAX RS Turbo R : 2021
  Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
  Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
  Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
  Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
  Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+
  Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
  Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020
  Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021
  Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+

  NOTE:
  A wheel spacer is required with factory wheels
  Without a spacer, all wheels must be 14” diameter or greater with a minimum of 5+2 offset
  Not compatible with Smart-Shox
