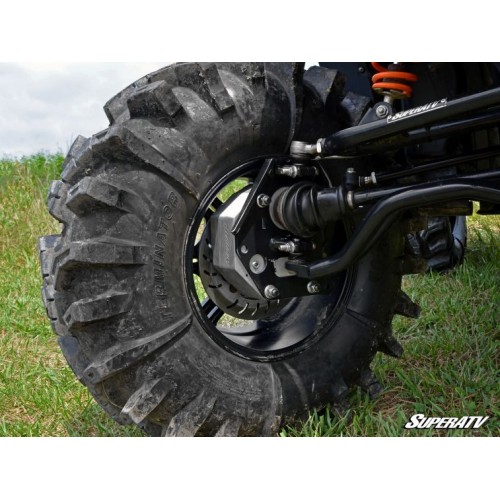

SuperATV Polaris RZR 570 4" Portal Gear Lift

Features:

Available with billet or cast aluminum housing
Cool, quiet, precision ground gears made from 9310 alloy billet steel
Increases width by 4 in. per side (8 in. total)
1.5 in. diameter 4340 hardened steel drive shaft
No leak bearings and seals
Universal hub fits all major bolt patterns
Comes complete with all hardware, backing plates, brakes lines and instructions

Wheel Requirements:

14” or larger wheel required
Cannot exceed 5” backspacing
Not compatible with dual beadlock wheels
Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer

Gen 3 Portals are Geared for All

SuperATV’s GDP 4” Portal Gear Lift for the Polaris RZR 570 is Geared for All. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions. You can get exactly what you need for your riding lifestyle.

Perfect for Mud

Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still ride it on the road and tear up trails and rocks.

Perfect for the Rocks

Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. You’ll have the clearance to get over anything without scratching up your skid plate, and you’ll have room to run bigger tires. These portals are built for boulders.

Perfect for Trails

Get 4” portals and a 15% gear reduction on your Polaris RZR 570 and take on the trail less-traveled. You’ll keep that high speed and leave your friends in the dust when you hit a hill or washout. It’ll bring out your UTV’s full potential.

Better Gears

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

Stronger Housings by Design

We make our housings stronger by design. We know what makes a portal box break and what doesn’t. Whether you choose cast aluminum housings or USA-made 6061 billet aluminum housings with a gorgeous finish you can only get with CNC machining, you know you’re getting the strongest boxes in the business—they’re built with experience. And they’re built with confidence.

Our housings are reinforced in all the right places
They’re built with better oil flow and gearing forces in mind
There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
A sealed input gear and double-lipped output seal
100% sealing coverage throughout so you can forget about oil leaks

Top-Rated Customer Service

Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.
